Microwave Active Circuit Design Training System: MT-10600

MT-10600:Microwave Active Circuit Design Training System


Curriculum Objectives * Training for wireless communication technicians and engineers * To understand the applications and measurements of communication instruments and products * Design and implementation ability training for microwave module circuit To shorten the gap between academic and industrial worlds Curriculum Outline* * Design and Implementation of microwave front end receiver module * Design and implementation of microwave front end transmitter module * Design and implementation of voltage controlled oscillator and phase locked loop * Design and implementation of IQ modulator and demodulator * Design and implementation of digital and analog wireless transceiver

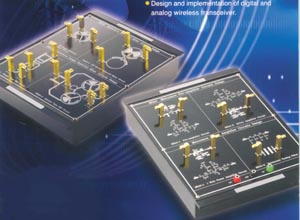

The Microwave active Circuit Design Training System comes with 8 different experiment boards, all conveniently stored in a metal case that can be sat upright or sideways.
MT-10601 Microstrip Line Matching Circuit 1. Measurement of l/4 impedance Transformer Matching Network (Operation Frequency: 2400 MHz; S11< -10 dB) 2. Measurement of Signal and Balanced short Stubs Matching Network (Operation Frequency: 2400 MHz; S11< -10 dB) 3. Measurement of Signal, Balanced, and Radio Open Stubs Matching Network (Operation Frequency: 2400 MHz; S11< -10 dB) 4. Measurement of l/8 and 3 l/8 Open Stub Matching Network (Operation Frequency: 2400 MHz; S11< -10 dB)
MT-10602 Low Noise Amplifier 1. Measurement of Frequency Response (Operation Frequency: 2350 ~ 2450 NHz; S11 < -10dB, S22 < -10 dB, S21> 10 dB) 2. Measurement of Noise Figure (Operation Frerquency: 2350 ~ 2450 MHz; NF < 1.8 dB) 3. Measurement of 1 dB Compression Point (Operation Frequency: 2400 MHz; P 1dB > -15 dBm) Voltage Controlled Oscillator 1.Measurement of Oscillation Frequency and Output Power (Oscillation Frequency: 2350 ~ 2450 MHz; Output Power > -5dBm) 2. Measurement of Phase Noise (Phase Noise: -90 ~ -100 dBc/Hz @ 100 kHz) 3. Measurement of Gain Factor and Tunable Bandwidth (Gain Factor: Factor: 10 ~ 20 MHz/ Volt; Tunable Bandwidth: 60 ~ 70 MHz) 4. Measurement of Pushing Figure (Pushing Figure: 8MHz/ Volt)
MT-10603 Pre-amplifier 1. Measurement of Frequency Response (Operation Frequency: 2350 ~ 2450 NHz; S11 < -10dB, S22 < -10 dB, S21> 10 dB) 2. Measurement of 1 dB Compression Point (Operation Frerquency: 2400 MHz; P 1dB > 5 dBm) 3. Measurement of 3rd Order Intercept Point (Operation Frequency: 2400 MHz;OI P3> 25 dBm) Power Amplifier 1.Measurement of Gain Flatness (Operation Frequency: 2350 ~ 2450 MHz; Gain Fitness: +/- 1.5 dB) 2. Measurement of 1 dB Compression Point (Operation Frerquency: 2400 MHz; P 1dB > 23 dBm) 3. Measurement of 3rd Order Intercept Point (Operation Frequency: 2400 MHz;OI P3> 40dBm) 4. Measurement of Ratio of Fundamental to Harmonics (Operation Frequency: 2400 MHz)
MT-10604 Phase Locked Loop Controller 1. LCD and Keypad Testing (Locked Frequency Display; Locked Status Detection) 2. MB 15E07 Control Signal Testing (Locked Frequency: 2250 ~ 2350 MHz; Stepped Frequency: 1 MHz, 10 MHz) Phase Locked Loop 1. Measurement of Frequency Response for Loop Filter (3-dB Frequency: 12.5 kHz) 2. Measurement of PLL and Phase Noise (Phase Noise< -100 dBc/Hz @ 100 kHz) 3. Measurement of PLL Locked Time (Locked Time < 5 ms)
MT-10605 Balanced Mixer 1. Measurement of Conversion Loss vs LO Power (RF: 2420 MHz, LO: 2350 MHz; Conversion Loss: < 15 dB) 2. Measurement of Conversion Loss vs RF Power (RF: 2420 MHz, LO: 2350 MHz; Conversion Loss: < 15 dB, P 1dB> 0 dBm) 3.Measurement of 3rd Order Intercept Point (RF: 2420 MHz, LO: 2350 MHz; OIP3 > 10 dBm) 4. Measurement of IF Bandwidth (RF: 2360 ~ 2450 MHz, Lo: 2350 MHz; IF Bandwidth: > 100 MHz) 4. Measurement of Isolation (Operation Frequency: 2350 ~ 2450 MHz; Isolation: > 20 dB) Image-rejection Mixer 1. Measurement of Conversion Loss vs LO Power (RF: 2420 MHz, LO: 2350 MHz; Conversion Loss: < 15 dB) 2. Measurement of Conversion Loss vs RF Power (RF: 2420 MHz, LO: 2350 MHz; Conversion Loss: < 15 dB, P 1dB> 5 dBm) 3.Measurement of 3rd Order Intercept Point (RF: 2420 MHz, LO: 2350 MHz; OIP3 > 15 dBm) 4. Measurement of Isolation (Operation Frequency: 2350 ~ 2450 MHz; Isolation: > 30 dB) 4. Measurement of Image-rejection Level (RF: 2250 ~ 2350 MHz; LO: 2350 MHz; Image-rejection Level: > 30dB)
MT-10606 IQ Modulator 1. Measurement of PSK Modulator (Operation Frequency: 70.7 MHz; Data Rate: > 100 kbps) 2. Measurement of QPSK Modulator (Operation Frequency: 70.7 MHz; Data Rate: > 100 kbps) IQ Demodulator 1. Measurement of PSK Demodulator (Operation Frequency: 70.7 MHz; Data Rate: > 100 kbps) 2. Measurement of QPSK Demodulator (Operation Frequency: 70.7 MHz; Data Rate: > 100 kbps)
MT-10607 Digital Wireless Transmitter 1. Measurement of Output Power (Operation Frequency: 2400 MHz; P out > 10 dBm) 2. Measurement of Harmonics Output Power (Operation Frequency: 2400 MHz; P out < -45 dBm) 3. Measurement of Modulation Signal (Operation Frequency: 2400 MHz; Type of Modulation: FSK)
MT-10608 Digital Wireless Receiver 1. Measurement of Sensitivity (Operation Frequency: 2400 MHz; Receiver Sensitivity:> -80 dBm) 2. Measurement of Demodulation Signal (Operation Frequency: 2400 MHz; Type of Demodulation: FSK) 3. Measurement of Image-rejection Ability (Operation Frequency: 2400 MHz; Image-rejection Level: > 30 dB)
Optional Equipments FG-442002: Function Generator and DC Power Supply (optional) Function Generator: Two signal output ports Freq. Range: 10 Hz ~ 100KHz and 100Hz ~ 1 MHz Waveforms: Sine, Triangle, Square, TTL Pulse Amplitude: 10 Vpp Built-in 6-digit frequency counter Large 0.5" LED display Overload protection DC Power Supply: Triple bipolar voltage output Constant voltage operation Low ripple and noise RG-442003: 3-band Signal Generator (Optional) Five signal output ports Frequency Range: 850 MHz ~ 950 MHz x 2 2350 MHz ~ 2450 MHz x 2 70.7 MHz IF/FM Output Power: -20dBm ~ 0 dBm -15dBm ~ +5 dBm -30dBm ~-10 dBm Frequency synthesizer structure Built-in LCD display Spectrum Analyzer (3 GHz) (Optional)

Order 1-800-870-1955
