Wind Power Generator and Pole Assembly --- Choice of:

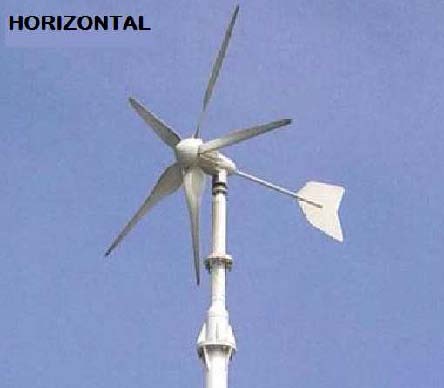

HORIZONTAL: 400W, Wind Speed Rating: 12M/sec, 45M/sec max.; Cut-in Speed: 2M/sec. 5-blade

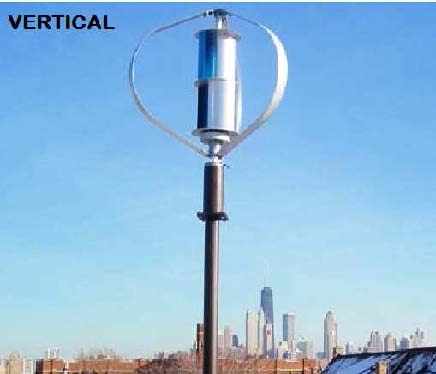

VERTICAL: 300W, Wind Speed Rating: 13.5M/sec, 60M/sec max.; Cut-in Speed: 3M/sec.

Optional: Base mounting on 4 pcs of 4¡±(minimum)-wheels for Portability and Maneuverability.

Modular Wind Power Generation System: 31.5¡± (W)x23.6¡±(H)x11.8¡±(D); Lab Monitoring Module with Connection Terminal Block and Digital Electric Meter; Circuit Diagram Printed on the Panel.

Solar Deep Cycle Battery: 4 pcs of DC12V/75AH with Rack.

MPPT Solar-Wind Charger: Input: AC5~38V; Output: DC12V, 16Amax; Power: 400Wmax

AC Converter Module: Input: DC12~75V; Output: AC 220V 60Hz, 15Amax, 300Wmax.

DC/AC Sinewave/Modified Inverter: Input: DC12V; Output: AC110V 60Hz, 180Wmax.

AC Chargers: Input: AC90~240V; Output: DC13.8V.

NI USB-6008 and Labview Adapter Card with Test Examples boost learning and practice.

Hardware Installation and Test Manual.

OPTIONAL: On-Grid Controller
