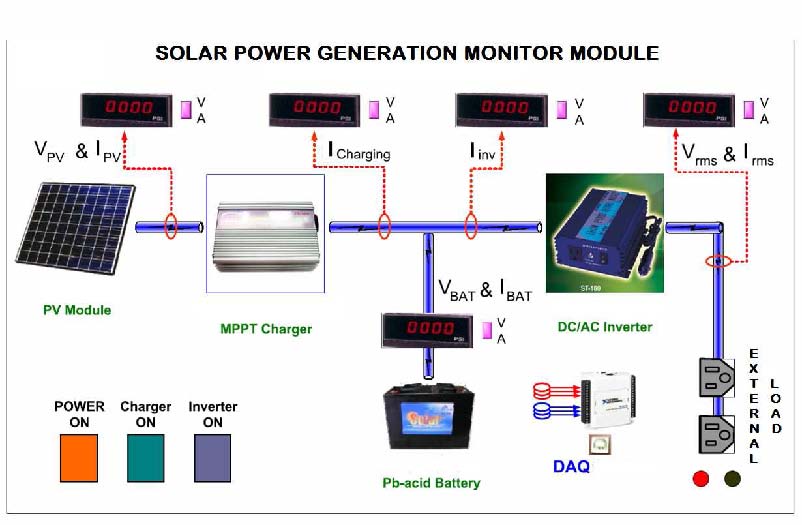

Modular Solar Power Generation System: 31.5¡± (W)x23.6¡±(H)x11.8¡±(D); Lab Monitoring Module with Connection Terminal Block and Digital

Electric Meter; Circuit Diagram Printed on the Panel.

Solar Deep Cycle Battery: 4 pcs of DC12V/75AH with Rack

MPPT Solar Charger: 200Wmax.,15Amax

AC Converter Module: Input: DC10~45V; Output: AC 220V 60Hz, 15Amax, 300Wmax

DC/AC Sinewave/Modified Inverter: Input: DC12V; Output: AC110V 60Hz, 180Wmax

AC Chargers: Input: AC90~240V; Output: DC13.8V

NI USB-6008 and Labview Adapter Card With Test Examples boost learning and practice.

Solar Panel, Polysilicon Module, DC17V/135W.

Hardware Installation and Testing Manual

OPTIONAL: On-Grid Controller.
