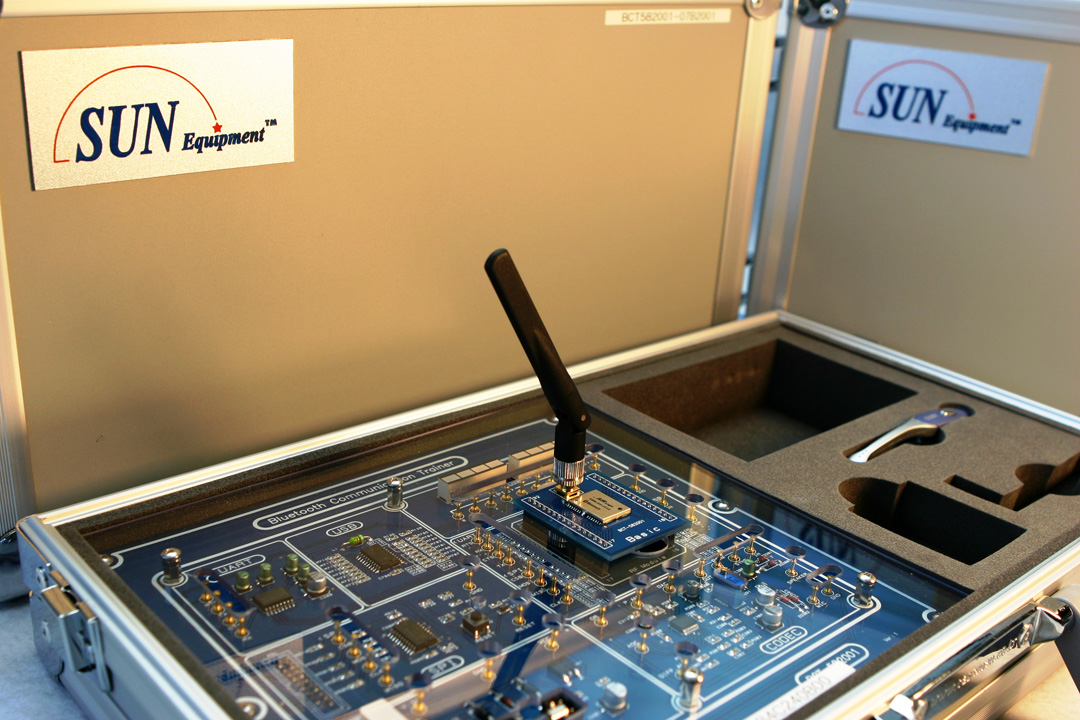

Bluetooth Communication Trainer: BCT-582001 |
![]() |
|
Features: | |||
* Protocol Analysis and Simulation/ Emulation | |||
-Protocol Training: Protocol Command, Protocol Leveling, Protocol Signaling | |||
-Profile Training: Profile Leveling, Profile Signaling, Profile Command | |||
* Demo Function | |||
-Audio Conversation | |||
-File Transfer | |||
-Chatting | |||
-File Transfer | |||
* USB, UART Interfaces | |||
Specifications: | |||
* Bluetooth Firmwave Version: HCI_V16.4 | |||
* Bluetooth Specification Version: V1.1 | |||
* Bluetooth Core Chip: CSR BlueCore 02-External | |||
* Bluetooth Module: BlueSEM II | |||
* Interface: UART, SPI, USB | |||
* Codec Filter: 13-bit Linear PCM | |||
* Operating Frequency Range: 2402 ~ 2480 MHz | |||
* Occupied Channel Frequency: 1 MHz | |||
* Transmit Power Level: +4 dBm (class 2) | |||
* Receiver Sensitivity: -80 dBm | |||
* Antenna: Dipole | |||
Components: | |||
Carrying Case | 2 pcs | ||
Headset | 2 pcs | ||
Adaptor | 2 pcs | ||
Module Board | 2 pcs | ||
USB Cable | 2 pcs | ||
UART Cable | 2 pcs | ||
SPI Cable | 1 pc | ||
CD Software | 1 pc | ||
User's Manual | 1 pc | ||
Experiments: | |
Part I: Introduction to Bluetooth Technology | |
* Hardware installation | |
Part II: Hardware | |
* Power Supply | |
* Interface | |
* Codec | |
* RF Module | |
Part III: Bluetooth Protocol Monitoring | |
* HCI Initailization and Inquiry | |
* HCI Connection | |
* HCI Disconnection | |
* HCI Data Transfer | |
* L2CAP Connection | |
* L2CAP Disconnection | |
* L2CAP Data Transfer | |
* RFCOMM Protocol Connection | |
* RFCOMM Disconnection | |
* RFCOMM Data Transfer | |
* Data Transfer between SDP Client and Server | |
Part IV: Bluetooth Protocol Emulation | |
* Protocol Stack Emulation | |
* Appendix A |
Laptop computers are not included.
